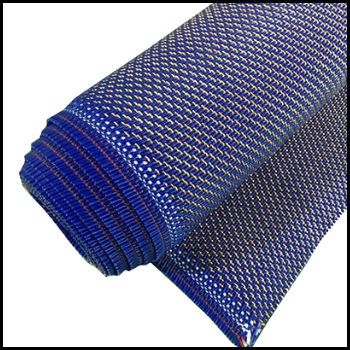

Cushion Pads


Product Description

Our Cushion Pads are made by European Quality Silicon & twilled Bunched Copper. Cushion Pads are used in short cycle hot press to buffer the pressure and transfer the heat. It is placed between the hot platen and the press plate in the short cycle hot press machine.

This copper silica gel cushion adopts imported silica gel and copper wire, with imported knitting machine woven, has a good buffer performance, uniform heat transfer, long service life, etc. Imported copper silicone cushion (used for wooden floor production) is suitable for various ranges of imported and domestic hot press.

Name
Cushion Pad for Short Cycle Lamination Press
Material
Copper Wire and Silicone Rubber
Silicone
European Quality
Breaking Elongation
310%
Tensile Strength of Silicone Rubber
17N/mm
Silicone Color
White, Blue or Can be customized
Working Temperature
-40℃ ~280℃
Working Pressure
10~40mpa
Service Life
80,000 to 1,00,000 Boards
Copper Wires Quantity
11 / 13 / 15 Wires
Feature
Great anti-fatigue performance
High buffer performance
Uniform heat transfer
Long Service Life
Heat resistance
Size
8’ X 4’ (2800mm X 1470mm)
8’ X 6’ (2800mm X 2300mm)
9’ X 4’ (3200mm X 1470mm)
9’ X 6’ (3200mm X 2300mm)
Or Can be customized as per your needs

Specifications

Thickness: 2.2mm

Material: Silicone + Bare Copper



FAB POINTS:

  • 35+ years experience
  • More Production Per Pad
  • Best Workmanship and material used
    • Roll packing available to save cost on extra cushion pads.
    • Immediate delivery.
    • No stock holding
    • All sizes available 8x4, 8x6, 9x4, 9x6, 10x4, 10X6 or any other size can be customised.
  • Longer Life.
  • Best in class quality, German quality brought at your doorsteps at affordable prices.

Main function:

1. Make the working pressure and working temperature of the hot platen evenly transmitted, which can make the adhesion between the melamine paper and the board more dense, uniform, and smooth, thereby improving the surface and internal quality of the finished products.

2. Excellent performance such as heat resistance, compensation of platen error, and protection of press plate.

To ensure the best results, it needs to be replaced after a period of use.
