Veljan Hydraulic Pumps

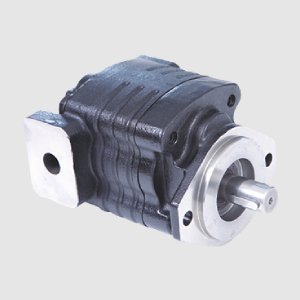

Single Gear Pumps

Model No:
VGP - B
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
0.6 - 2.44
Max. Displacement (cm³/rev):
9.8 - 39.9
Maximum Speed rpm:
3000
Mounting Standard:
SAE - A, SAE - B
Model No:

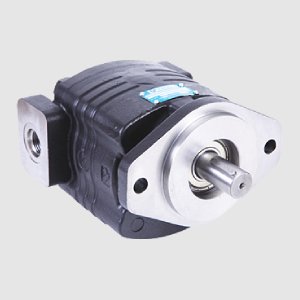

VGP - C
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
0.97 - 3.94
Max. Displacement (cm³/rev):
15.9 - 64.4
Maximum Speed rpm:
3000
Mounting Standard:
SAE - B, SAE - C
Model No:

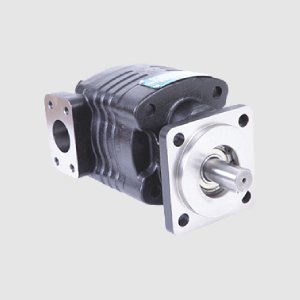

VGP - D
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
1.28 - 6.38
Max. Displacement (cm³/rev):
20.6 - 104.2
Maximum Speed rpm:
2400
Mounting Standard:
SAE - B, SAE - C
Model No:

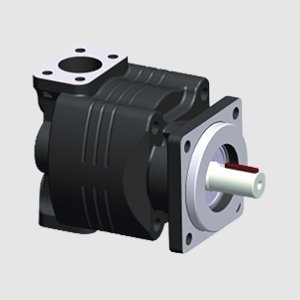

VGP - E
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
2.65 - 8.85
Max. Displacement (cm³/rev):
43.8 - 146.5
Maximum Speed rpm:
2400
Mounting Standard:
SAE - B, SAE - C

Double Gear Pumps

Model No:

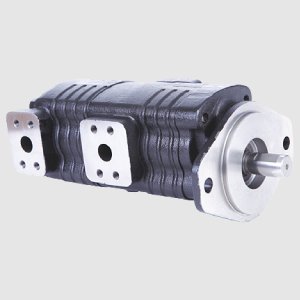

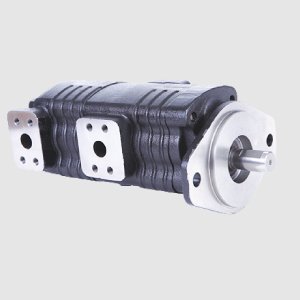

VGP - BB
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
0.6 - 2.44
Max. Displacement (cm³/rev):
9.8 - 39.9
Maximum Speed rpm:
3000
Mounting Standard:
SAE - B (2 & 4 Bolt)
Model No:

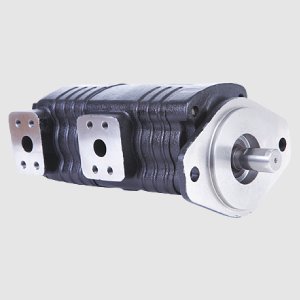

VGP - CC
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
1.9 - 7.85
Max. Displacement (cm³/rev):
31.5 - 128.8
Maximum Speed rpm:
3000
Mounting Standard:
SAE - B / C (2 & 4 Bolt)
Model No:
VGP - DD
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
3.0 - 12.71
Max. Displacement (cm³/rev):
50.2 - 208.4
Maximum Speed rpm:
3000
Mounting Standard:
SAE - C (2 & 4 Bolt)
Model No:

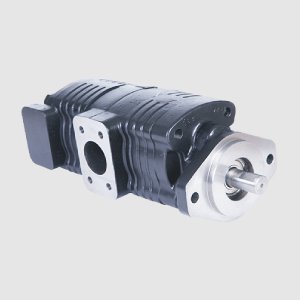

VGP - EE
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
5.30 - 17.70
Max. Displacement (cm³/rev):
87.6 - 208.4
Maximum Speed rpm:
3000
Mounting Standard:
SAE - C (2 & 4 Bolt)
Model No:
VGP - DB
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
1.88 - 8.79
Max. Displacement (cm³/rev):
30.9 - 144.1
Maximum Speed rpm:
3000
Mounting Standard:
SAE - C (2 & 4 Bolt)
Model No:

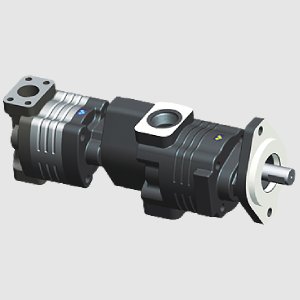

VGP - DC
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
2.22 - 10.28
Max. Displacement (cm³/rev):
36.5 - 168.6
Maximum Speed rpm:
3000
Mounting Standard:
SAE - C (2 & 4 Bolt)

Triple Gear Pumps

Model No:
VGP - BBB
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
1.8 - 7.32
Max. Displacement (cm³/rev):
29.4 - 119.7
Maximum Speed rpm:
3000
Mounting Standard:
SAE - B & C (2 & 4 Bolt)
Model No:
VGP - CCC
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
2.91 - 11.82
Max. Displacement (cm³/rev):
47.7 - 193.2
Maximum Speed rpm:
3000
Mounting Standard:
SAE - B&C (2 & 4 Bolt)
Model No:
VGP - DDD
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
3.84 - 19.14
Max. Displacement (cm³/rev):
61.8 - 312.6
Maximum Speed rpm:
3000
Mounting Standard:
SAE - C (2 & 4 Bolt)
Model No:
VGP - EEE
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
7.95 - 26.55
Max. Displacement (cm³/rev):
131.4 - 439.5
Maximum Speed rpm:
3000
Mounting Standard:
SAE - C (2 & 4 Bolt)

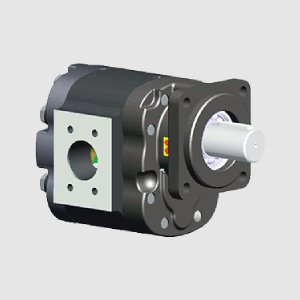

Bearing Pumps

Model No:
VGP - CH / CH1
Maximum Pressure (psi):
3000
Maximum Pressure (Bar):
210
Max. Displacement (in³/rev):
0.99 - 4.92
Max. Displacement (cm³/rev):
15.9 - 80.0
Maximum Speed rpm:
2400
Mounting Standard:
SAE - B / C (2 & 4 Bolt)
Model No:
VGP - DH / DH1
Maximum Pressure (psi):
3000
Maximum Pressure (Bar):
210
Max. Displacement (in³/rev):
1.3 - 6.4
Max. Displacement (cm³/rev):
20.60 - 104.2
Maximum Speed rpm:
2400
Mounting Standard:
SAE - C (2 & 4 Bolt)
Model No:
VGP - EH / EH1
Maximum Pressure (psi):
3000
Maximum Pressure (Bar):
210
Max. Displacement (in³/rev):
3.1 - 12.2
Max. Displacement (cm³/rev):
50.20 - 200.10
Maximum Speed rpm:
2400
Mounting Standard:
SAE - C (2 & 4 Bolt)

Truck Pumps

Model No:

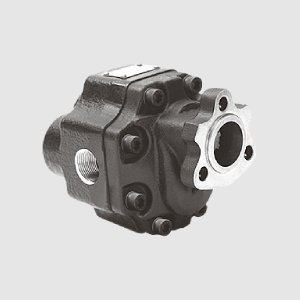

VGP - 3V Series
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
0.98 - 4.89
Max. Displacement (cm³/rev):
16 - 80
Maximum Speed rpm:
3000
Mounting Standard:
SAE - C
Model No:
VGP - 4V Series
Maximum Pressure (psi):
3500
Maximum Pressure (Bar):
240
Max. Displacement (in³/rev):
4.0 - 5.0
Max. Displacement (cm³/rev):
65 - 83
Maximum Speed rpm:
2700
Mounting Standard:
SAE - C
